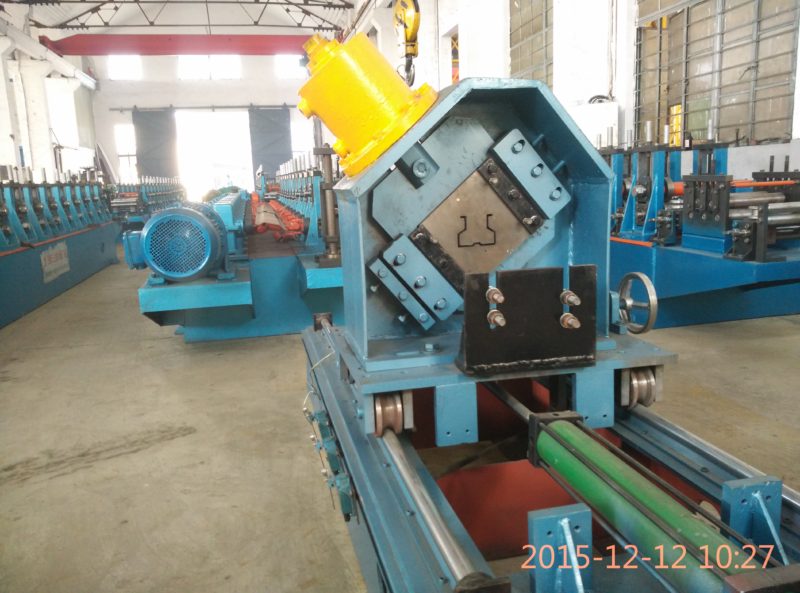

Warehouse Storage Rack Making Machine
Introduction
Warehouse storage rack making machine is an advanced metal roll former, which is used to produce warehouse storage rack with a high speed. This warehouse storage rack making machine consists of de-coiler, servo feeder, hole press, main roll forming machine and hydraulic shear units. The products made by rack roll forming machine are used as racks and shelves for supporting the daily commodities in supermarket, shops and factory warehouse.
Character
It is really a new type of energy saving and high-efficiency metal sheets roll former for warehouse storage rack, with many advantages like high forming speed, low noise, stable transmission, easy operation, easy maintenance and so on.
Technical Parameter
| Roller station | 24 stations |
| Material thickness | 1.5-3.0mm |
| Main motor power | 15Kw |
| Machine size | 9M x 1.4M x 1.2M |
| Forming speed | 12-16m/min |
| Effective width | 75-80mm/95-100mm |
Working Process
Decoiler- Leveling- Servo Feeding- Press Punching- Main Roll Forming- Cut to Length- Outer Table
