Unistrut Slotted Channel Roll Forming Machine

Introduction

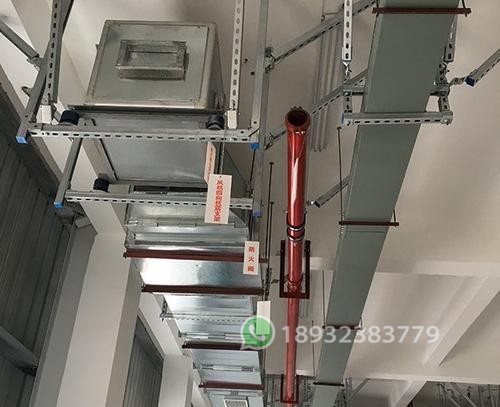

Unistrut Slotted Channel Roll Forming Machine is designed to produce unistrut’s slotted channel (1-5/8″ x 1-5/8″, 12 ga, slotted), which is used to mount, brace, support, and connect lightweight structural loads in building construction, including pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. The machine is composed of decoiler, leveler, serov Feeder, press punch, main roll forming, saw cutting, etc. Controlled by PLC control system, the machine is easy operation and fast efficiency.

Techncial Parameter

1. material thickness: 1.5-3.0mm
2. roller stations:30 stations
3. shaft diameter:Ф90mm
4.  shaft material: 40Cr
5.  roller material: Cr12Mov
6. main motor power: 55Kw
7.  forming speed:0-15m/min

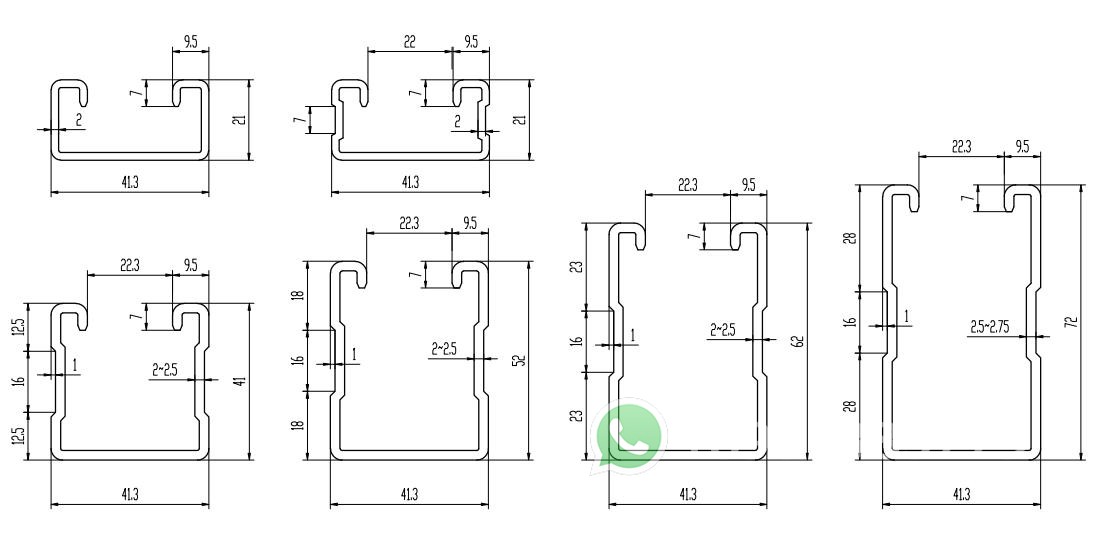

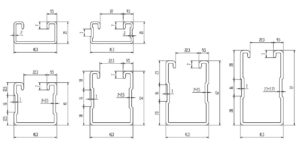

Unistrut Profile Drawing

Unistrut channel

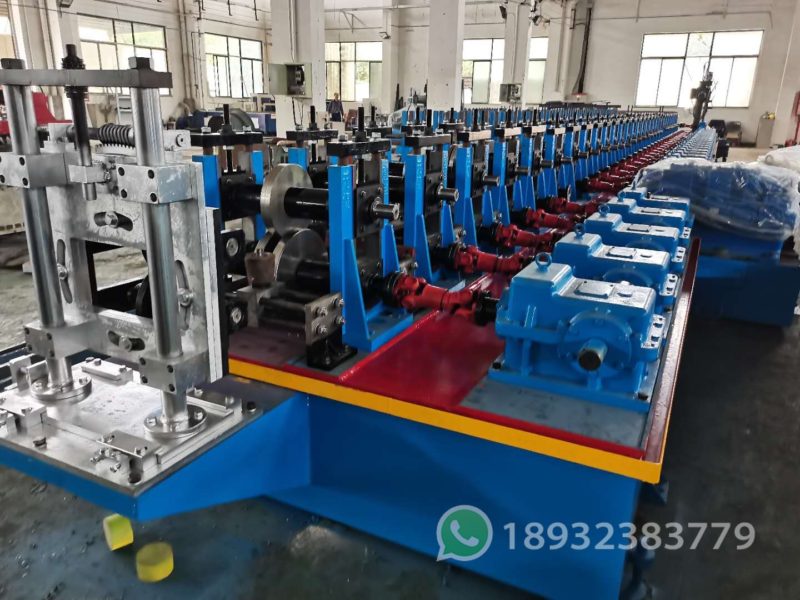

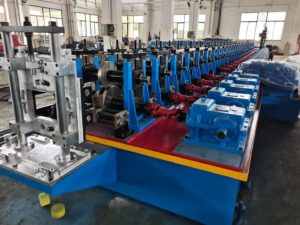

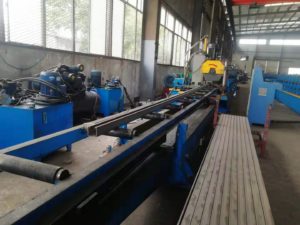

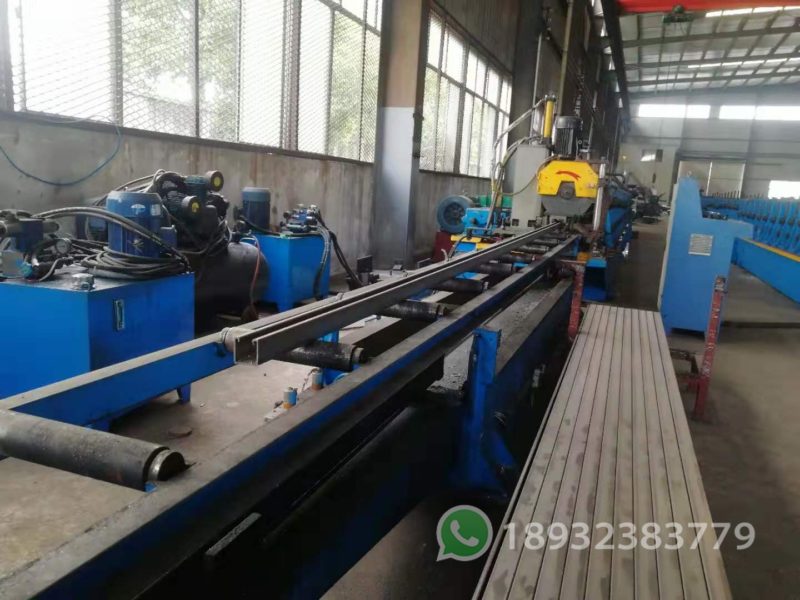

Machine Photo

Unistrut Slotted Channel Roll Forming Machine

Unistrut-Slotted-Channel-Roll-Forming-Machine

Machine Video
