Three Waves Highway Guardrail Roll Forming Machine
Introduction

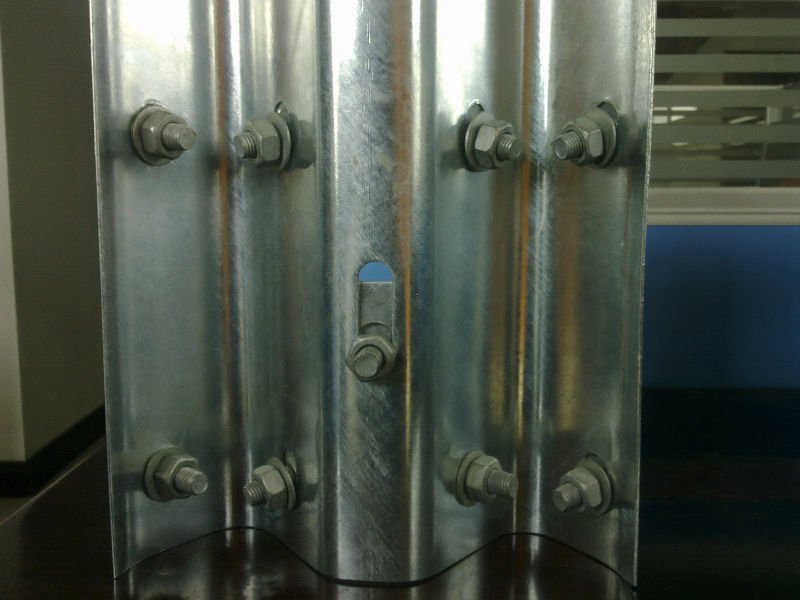

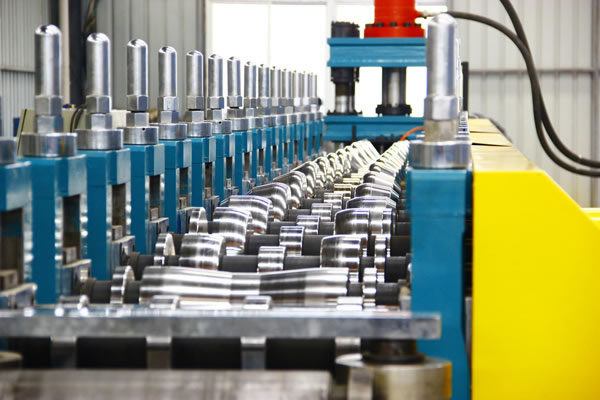

The three waves highway guardrail roll forming machine (also called three waves guardrail making machine) consists of un-coiler, main roll forming machine, cutting, punching, hydraulic station, control box and out tables. Highway guardrails are designed to reduce the severity of run-off-road, and prevent the vehicles running into the roadside objects. This highway guardrail, which has three Waves, is a very common crash barrier used in highway road.
Technical Parameter
| Material thickness | 3-5mm |
| Forming speed | 5-20m/min |
| Main motor power | 22Kw |
| Machine size | 25M X 2.1M X 1.7M |
| Machine weight | 32T |
◆ Advanced COPRA software Design from Germany
◆ Fully Automatic by PLC Control System
◆ World Brand Components Ensures Perfect Function
◆ Easy Installation and Maintenance
◆ Short and Prompt Delivery
◆ Factory Direct Price
◆ 12 Month Warranty with 24-Hour After Sales Service
Our highway guardrail roll forming machine is fixed in the container with steel ropes so that the machine is kept from being collided, and treatment for rust proof, covered by plastic film for the whole machine, spare parts and some small parts packed in wooden box.
