Teardrop Pallet Rack Step Beams Roll Forming Machine
Teardrop Pallet Rack Step Beams Roll Forming Machine
Machine Introduction
Teardrop Pallet Rack Step Beams Roll Forming Machine can produce pallet rack step beams, height size between 4” to 6 ”, the machine is fully automatically controlled by PLC control system. The machine is composed of decoiler, main forming machine , welding device, cutting device, outer table and control box.
Machine Technical Parameter
- Material thickness: 1.5-1.8mm
- Roller stations: 26 stations
- Forming speed: 10-15m/min
- Roller material:GCr15, HRC58-62
- Shaft diameter: ￠75mm, material: 40Cr
- Main motor power: 22Kw x 2
- Fly saw cutting power: 11Kw
- Cutting blade material: Cr12Mov
- Drive Way: Gearbox drive
- Cutting length tolerance: ±0mm
- Control system: PLC Panasonic, Japan
- Electrical parts: Schneider
- Machine weight：about 25 tons
- Main machine size: about 20000mmx1600mmx1450mm
Machine Photo

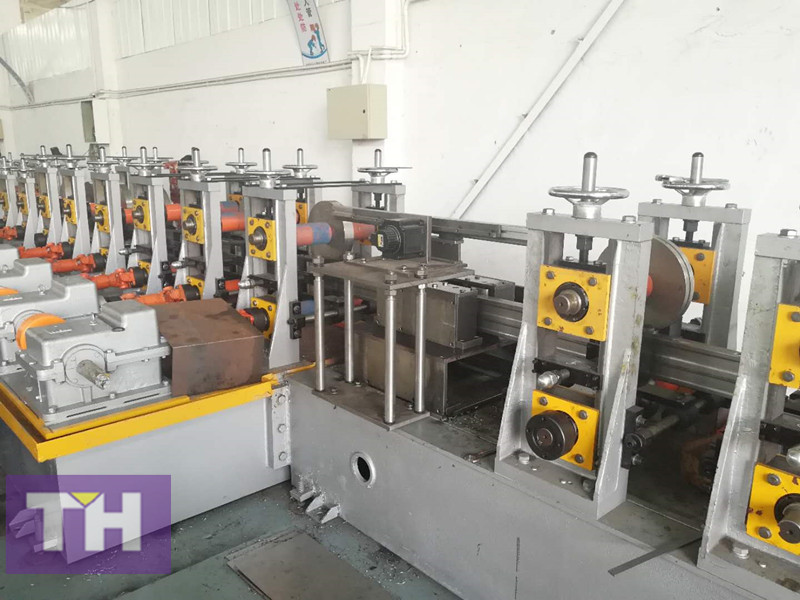

pallet rack step beam machine

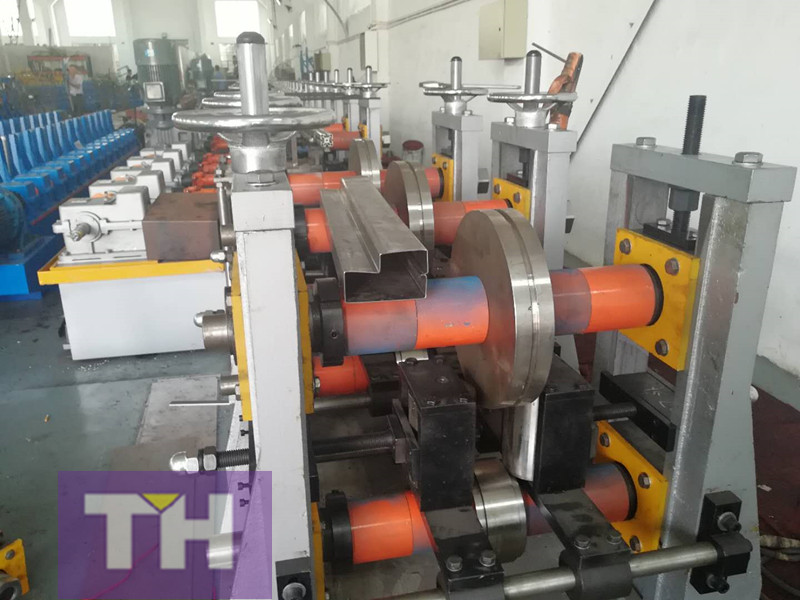

step beam machine
