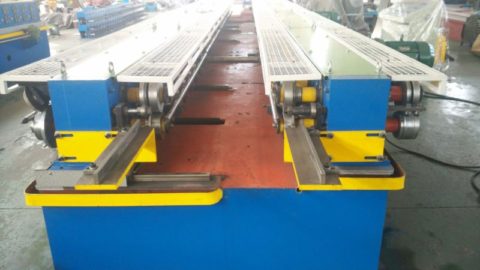

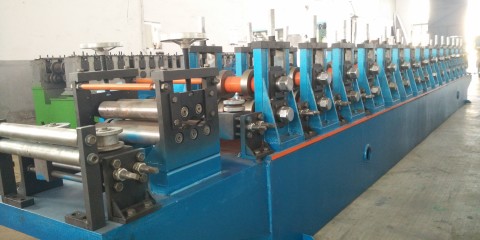

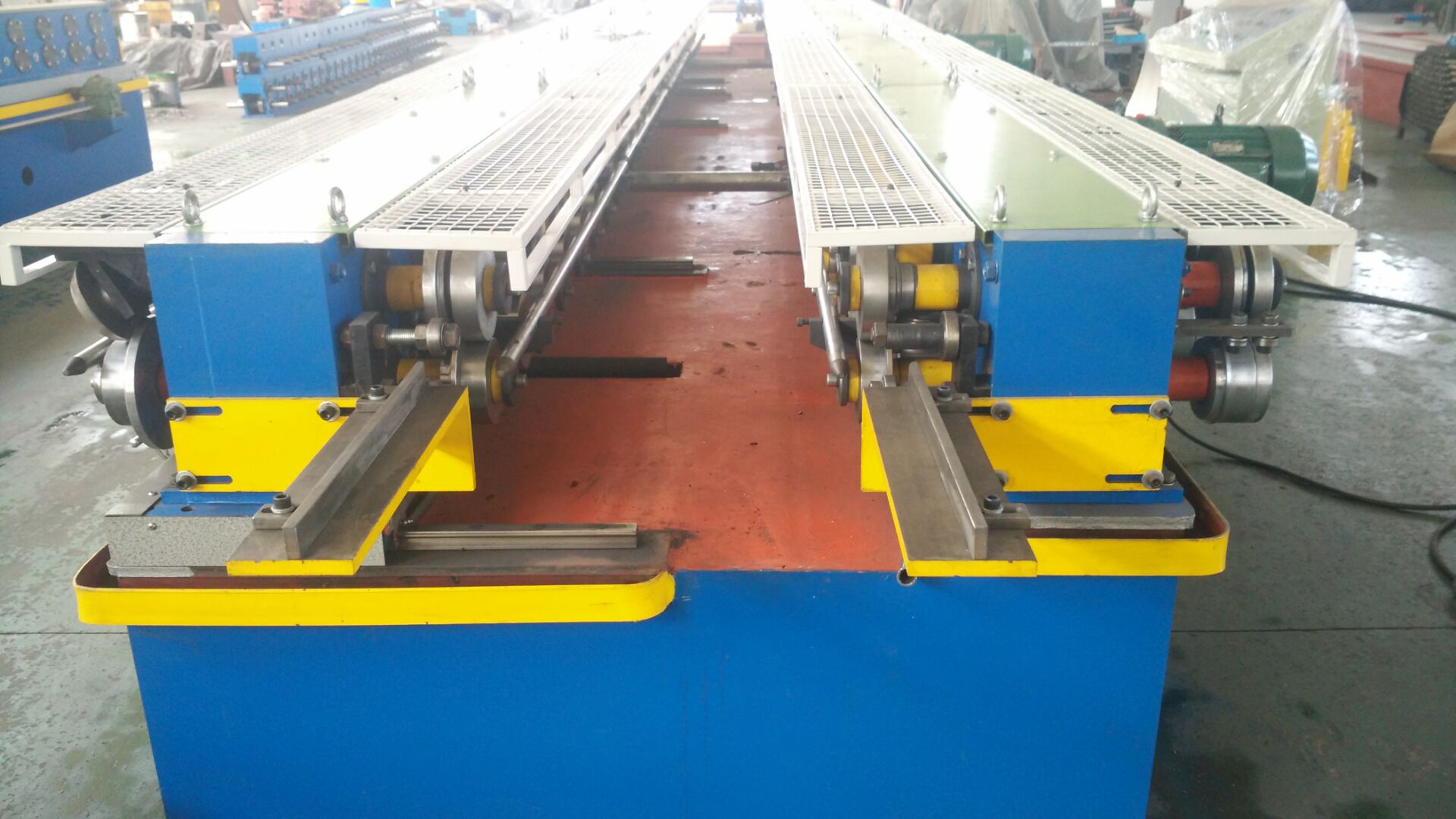

Supermarket Shelving Cold Roll Forming Machine
Introduction
Supermarket Shelving Cold Roll Forming Machine is an advanced metal roll former, which is used to manufacture supermarket rack shelf with a high speed. This shelving roll forming machine consists of de-coiler, leveler,servo feeder, main roll forming, cutting device, out table and control box.
Character
It is really a new type of energy saving and high-efficiency metal sheets roll former for supermarket rack shelf, with many advantages like high forming speed, low noise, stable transmission, easy operation, easy maintenance and so on.
Main Parameter
- Material thickness: 0.8mm
- Coil width Max: 700mm
- Production speed: 0-20m/min
- Main motor power: 11Kw
- Control system: PLC Panasonic
Working Process
Decoiler- Leveling- Servo Feeding- Press Punching- Main Roll Forming- Cut to Length- Outer Table
