Steel Silo Making Machine
Introduction

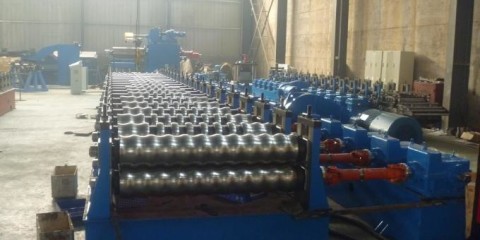

Our steel silo making machine consists of coil car, decoiler, feeding guide, levelling, cutting, hydraulic station, curving device, hydraulic station, control system and stacker, which is widely used for the purpose of commercial grain storage around the world, our steel silo making machine is especially designed to manufacture such steel sheets.
Technical Parameter
| Item | Parameter | Note |
| Applicable material | Galvanized sheet | The steel silo making machine is customized upon each customer’s requirements and the characteristics of processed material. |
| Feeding width | 1250mm | |
| Material thickness | 1-8mm | |
| Roller material | GCr15 | |
| Main motor power | 90Kw | |
| Roller stations | 18 stations | |
| Forming speed | 1-2 pcs/min | |
| Machine size | 32000x8000x2500 | |
| Machine weight | 110T |
Machine Features
- This machine is designed to process steel coil (thickness form 1mm to 8mm) into corrugated sheet with desired specification in one step.
- This steel silo making machine is most popular one among similar products on the market, and we can meet every customers’ needs if relevant drawings are provided. Meanwhile, the production process, including two options, is up to the customer. a)Form the straight sheet with corrugation first, and then punch holes and curve the sheet with another line. b)Shape forming, punching, curving and cutting are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced.
| Name | Qty |
| 10Ton hydraulic decoiler | 1 set |
| Straightening machine | 1 set |

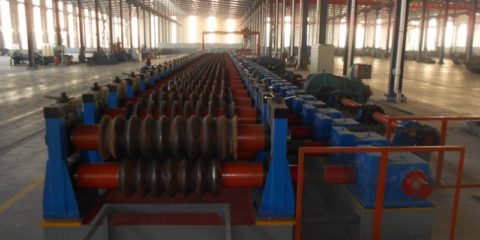

| Main roll forming machine | 1 set |
| Punching machine | 1 set |
| Curving machine | 1 set |

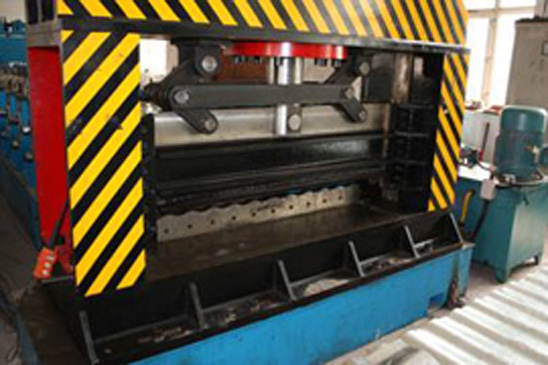

| Hydraulic cutting device | 1 set |
| Hydraulic station | 1 set |
| PLC control cabinet | 1 set |
| Stacker | 1 set |
