Introduction

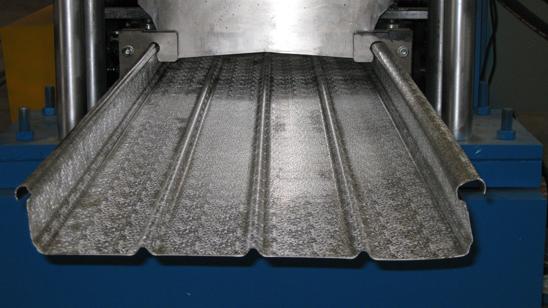

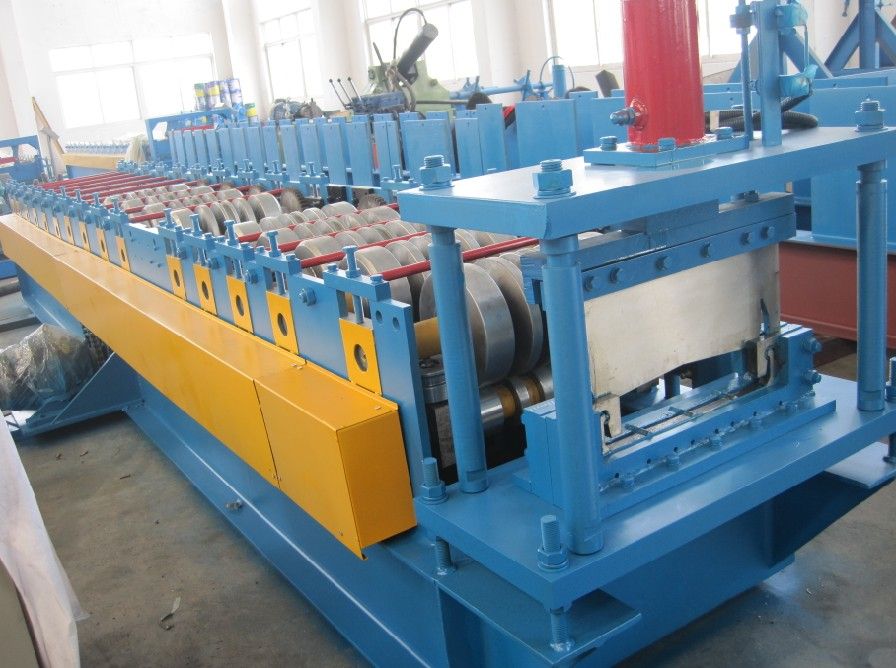

The Standing seam roll forming machine is to produce bemo panel from pre-painted steel sheet. The whole bemo panel roof solution usually needs three machines, standing seam roll forming machine, roof seamer and curving machine.
The bemo panel is used for the roof of buildings such like airport, railway station, etc.
| Material thickness | 0.7-1.2mm for color coated steel0.5-0.8mm for aluminum sheet |
| Forming speed | 12-16m/min |
| Roller stations | 15 stations |
| Main motor power | 5.5Kw |
| Machine size | 8000*1300*1000mm |
| Machine weight | 6 Tons |
