Stainless Steel Polishing Line for No.4 & Hairline
Stainless Steel Polishing Line for No.4 & Hairline
Introduction
Stainless Steel Polishing Line for No.4 & Hairline is designed to polish the stainless steel sheet surface to get the No. 4 finish or Hairline surface finish through polishing the surface of stainless steel sheet or coil with wide grinding belts and assistant oil. Our Stainless Steel Polishing Line for No.4 & Hairline is composed of No.4 oil grinding machine, hairline grinding machine, degreasing machine, cleaning machine, drying machine, laminator, 5 Sets of Roller Tables, Oil Mist Collector, and Oil recycling System, etc. The whole line can make No.3, No.4 and hairline finish together, but if you just need one finish function, you can just select corresponding machine assembly. The machine line uses abrasive belt is specialized size circular sanding belt, our machine using specialized grinding oil to make cooling and lubricating. When stainless steel sheet is processed in our machine, the sheet surface can appear color effect, which is the difference with “dry grinding”, and because of oil cooling effect, this machine is better for thin sheet. Users can get different thick and thin short line through changing different grid sanding belt. With our patent technology, we have solved market common problem of chatter marks or vibration marks on the sheet surface, which makes our technology to a high level in this industry.
Our company is specialized in designing and manufacturing stainless steel oil No. 4 polishing machine, hair line(HL) polishing machine, stainless steel polishing machine for No. 4 & Hairline, stainless steel 8K mirror polishing machine, any machines requirement, please feel free to contact.
Working Process
stainless steel sheets —- conveyor —- polishing machine for No. 4 (Dry/Oil operation) —- conveyor —- polishing machine for HL (Dry operation) —- conveyor —- filming machine —- conveyor —- packing
Main Parameters:
- material: stainless steel, aluminum, magnesium alloy, titanium alloy , copper, etc
- material thickness: 0.5-3mm
- material width: 1250-1550mm
- abrasive belt size( widthx perimeter): ( 1280-1580)x2625mm
- feeding speed: 4.8-20m/min
- abrasive belt motor : 2x55Kw
Machine Photo

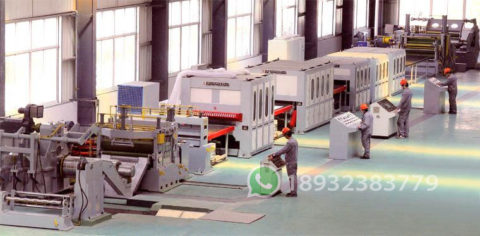

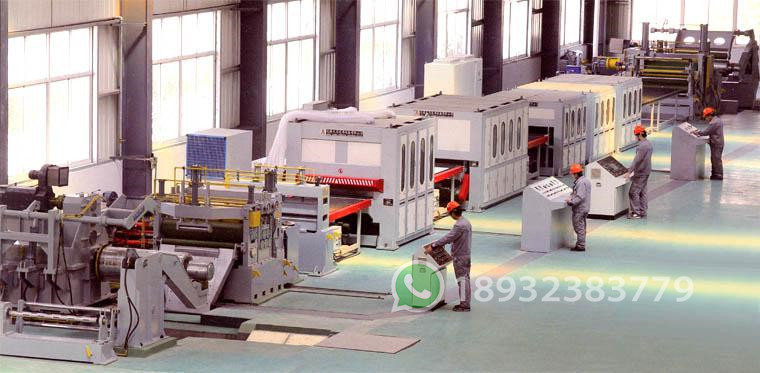

Stainless Steel Sheet Oil No.4 Grinding Machine
