Slitting Line
Introduction

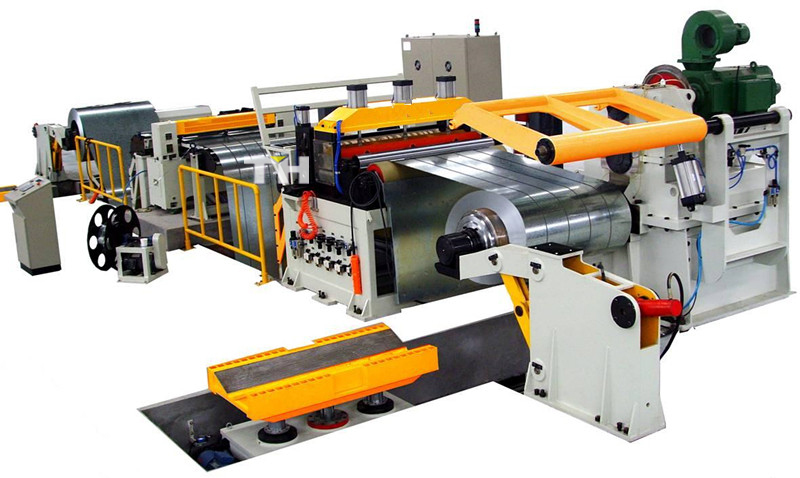

Slitting Line, also called metal coil slitter/slitting machine, is used for processing the CR, stainless steel, pre-painted or galvanized steel coils less than 3mm thickness into narrow steel strip coils with desired width. We can also supply the simple slitting line, low speed steel coil slitting line (0~50m/min), thick metal slitting line (6mm), different type of cut to length lines, slitting and cut to length combined line.
Application
The slitting strips can be used for milling, welding pipe, cold bend forming, stamping as billet. At the same time, changing different material blade can slit various metal coils.
Working Flow

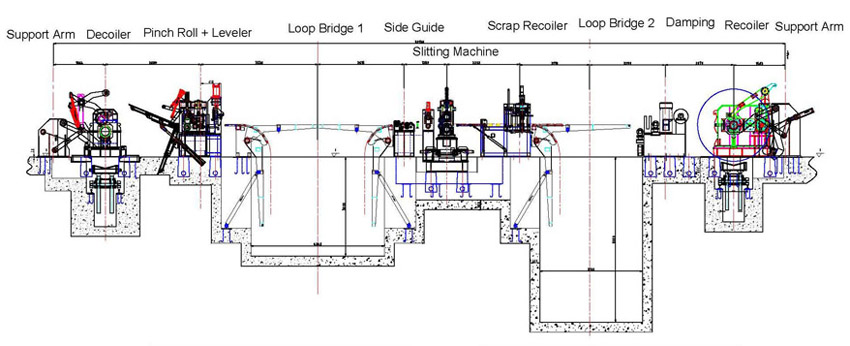

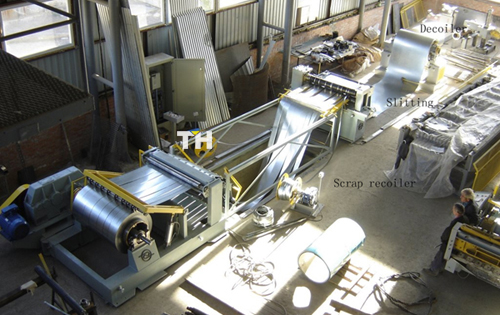

Decoiler —- Pinch Roll & Leveler —- Shear —- Loop Bridge —- Side Guide —- Slitting Machine —- Scrap Recoiler —- Loop Bridge —- Damping —- Recoiler
Technical Parameter
- Material : Cold Rolled Steel Coil; Galvanized Steel Coil; Pre-paint Steel Coil
- Thickness: 0.3-6mm
- Width: 1000/1300/1600/2000mm
- Coil weight: 10/15/20/25/30T
- Slitting speed: 0-120m/min
- Slitting pieces: 20pcs
