Shutter Rack Support Rail Roll Forming Machine

Shutter Rack Support Rail Roll Forming Machine

Introduction

Shutter Rack Support Rail Roll Forming Machine is used to produce support rail for radio shutter pallet rack, the support rails in the shuttle rack are attached with mounts on the support and fulfill two functions: they support the pallets and the shuttle beneath the pallets also moves along the rail. The machine is composed of decoiler, main forming machine, cutting device, control box , hydraulic system, etc. The machine is fully automatically controlled by PLC control system, with the advantage of easy operation and fast efficiency.

Technical Parameter

1. roller stations: 15 stations
2. roller material: GCr15
3. shaft material: 40Cr
4. main motor power: 37Kw
5. hydraulic cutting power: 11Kw
6. PLC brand: Panasonic

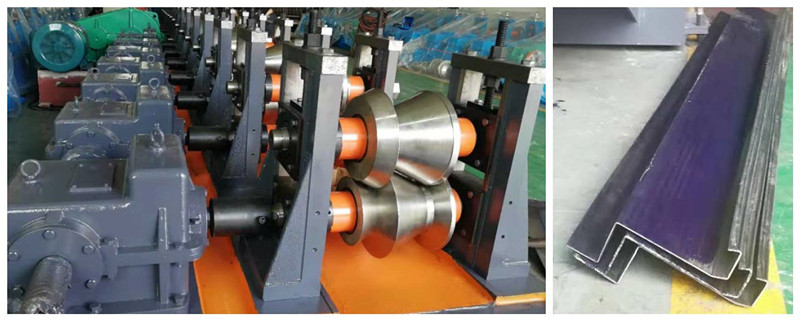

Machine Photo

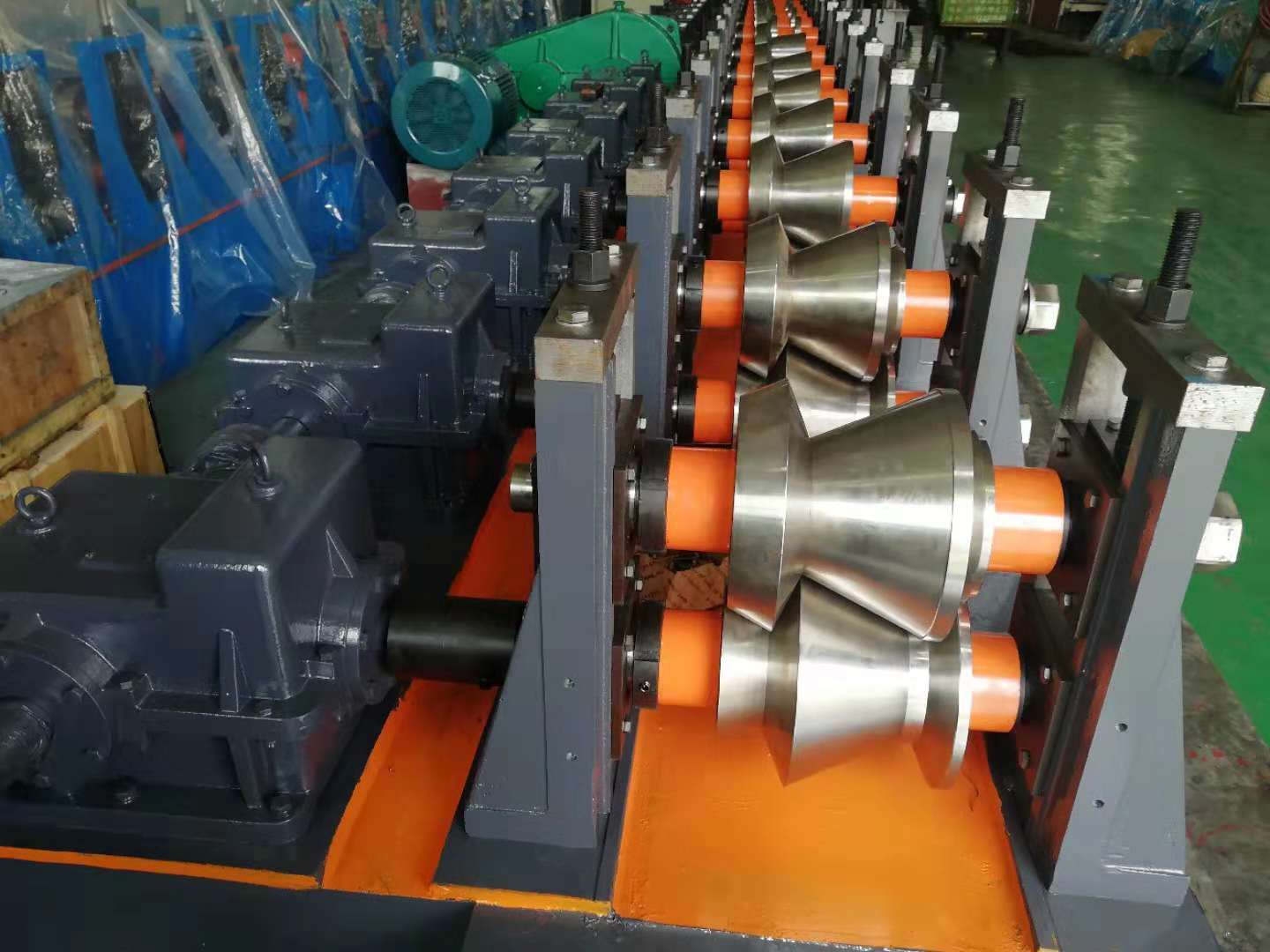

Shuttle Pallet Rack Support Rail Roll Forming Machine

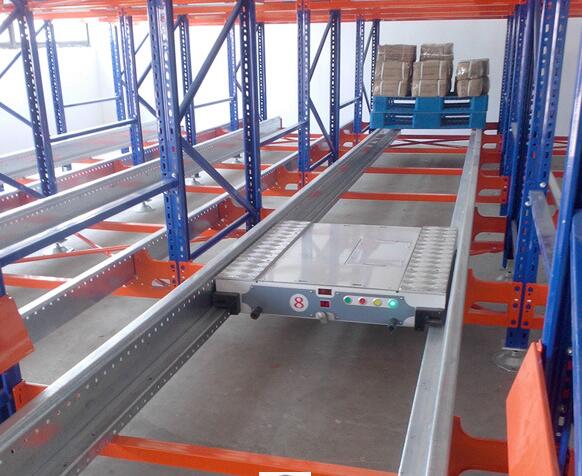

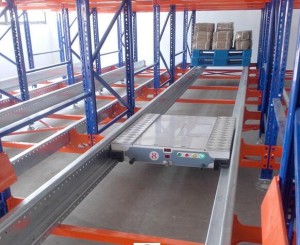

radio-shuttle-pallet-rack
