Box Beam Rack Roll Forming Machine

Introduction

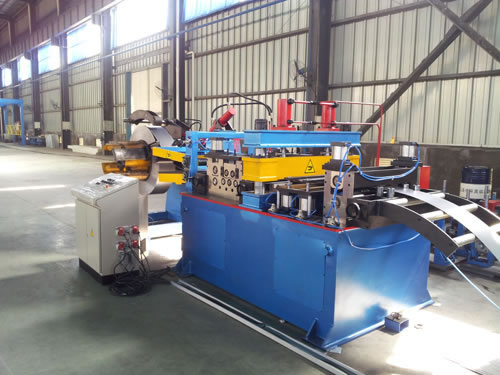

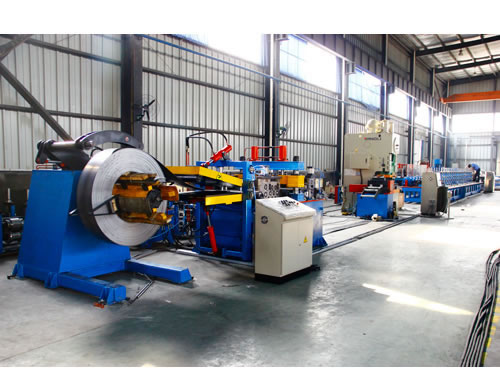

Box beam rack roll forming machine(also called rack roll forming machine) consists of decoiler, feeding guide, main roll forming, output table, main drive, fly saw cutting, welding device and PLC control system. The products made by rack roll forming machine are used as racks and shelves for supporting the daily commodities in supermarket, shops and factory warehouse.

Technical Parameter

Material thickness 1.2-1.5mm
Yield strength ≤G250Mpa
Forming speed 3-4M/min (EXCLUDING CUTTING STOP TIME)
Roller stations 28 stations
Main motor power 7.5Kw
Roller material 45# forged steel

Technical Parameter

Material thickness 1.2-1.5mm
Yield strength ≤G250Mpa
Forming speed 3-4M/min (EXCLUDING CUTTING STOP TIME)
Roller stations 28 stations
Main motor power 7.5Kw
Roller material 45# forged steel



◆ Advanced COPRA software Design from Germany

◆ Fully Automatic by PLC Control System

◆ World Brand Components Ensures Perfect Function

◆ Easy Installation and Maintenance

◆ Short and Prompt Delivery

◆ Factory Direct Price

◆ 12 Month Warranty with 24-Hour After Sales Service

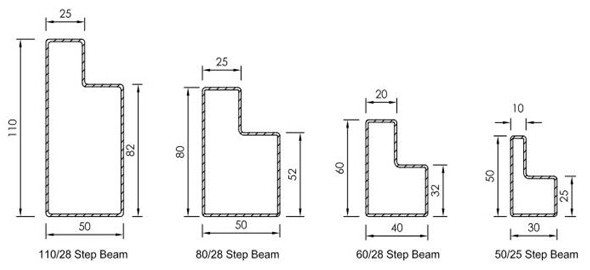

Step Beam

step beam

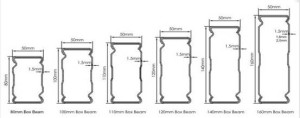

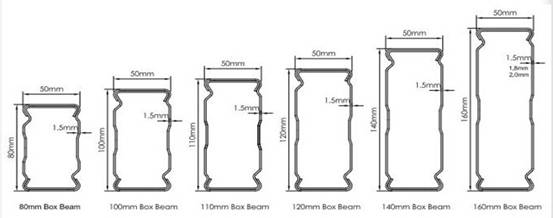

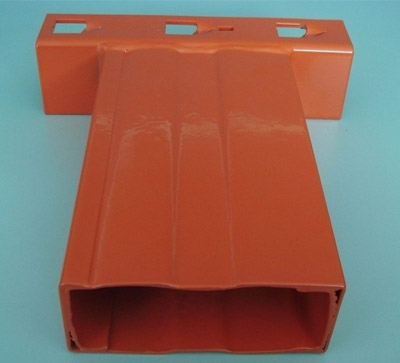

Box Beam

box beam profile
