Introduction

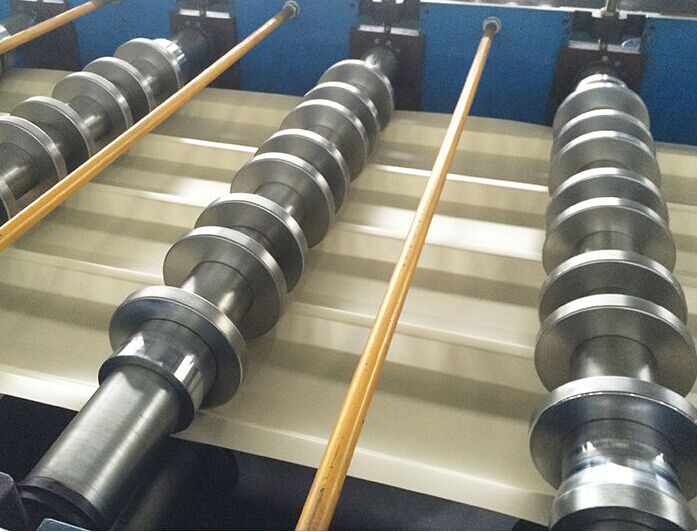

The IBR roof sheet roll forming machine consists of uncoiler, feeding guide, main roll forming, hydraulic station, control box and out table.
| Material thickness | 0.3-0.8mm |
| Forming speed | 8-12m/min |
| Roller stations | 18 stations |
| Main motor power | 7.5Kw |
| Machine weight | 12T |
