Introduction

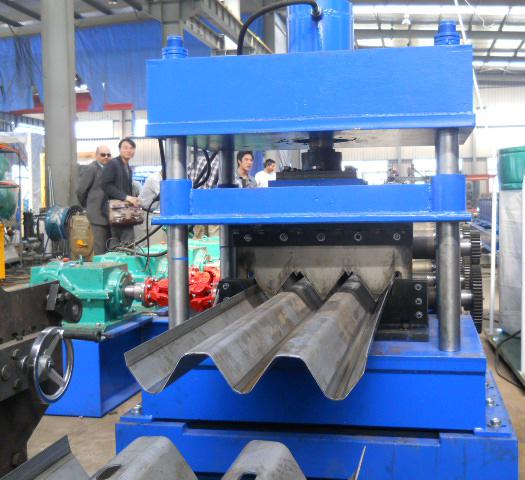

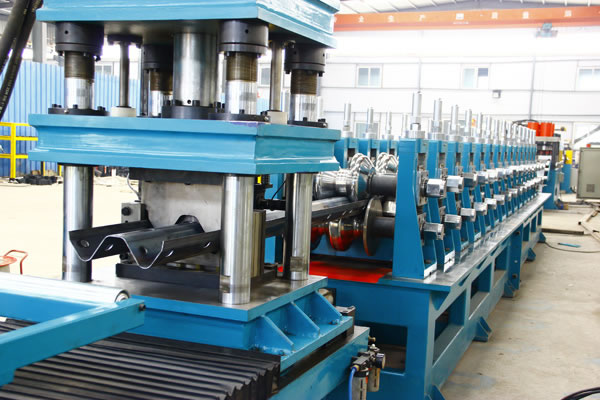

Two Waves Highway Guardrail Roll Forming Machine consists of uncoiler, main roll forming, cutting, punching, control system and out table.It’s widely used in high way and related fields. Our guardrail roll forming machine are well received for their concise and reasonable structure, good appearance and good carrying capacity.
Technical Parameter
| Thickness | 3-4mm |
| Forming speed | 5m–20m/min |
| Roller stands | 15 stations |
| Main motor power | 22Kw |
| Machine size | 25M*1.5M*1.7M |
| Machine weight | 22T |

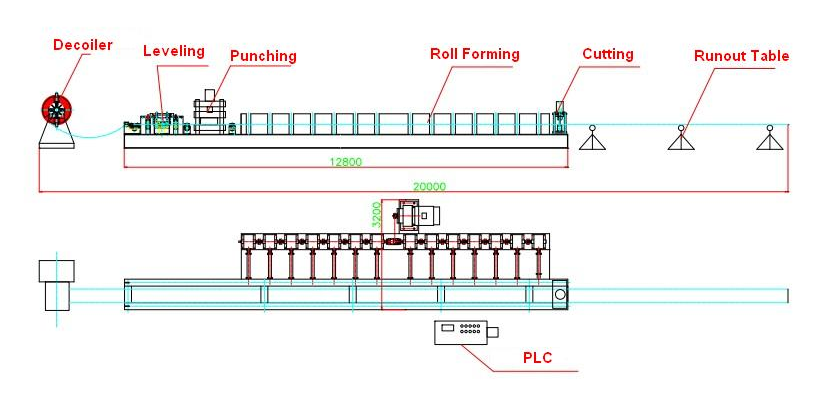

Working Flow:
Decoiler – Leveling – Feeding – Punching – Main Roll Forming – Cut To Length – Runout Table
Our highway guardrail roll forming machine is fixed in the container with steel ropes so that the machine is kept from being collided, and treatment for rust proof, covered by plastic film for the whole machine, spare parts and some small parts packed in wooden box.
