Highway Guardrail Repairing Machine
Highway Guardrail Repairing Machine Introduction This Highway Guardrail Repairing Machine is mainly applied to repair the crashed and wave shape guardrail beam of highway
Highway Guardrail Repairing Machine Introduction

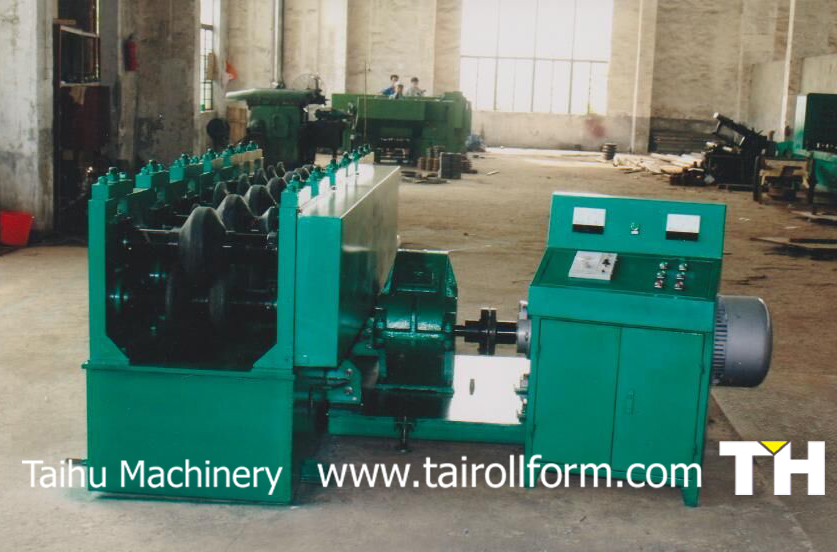

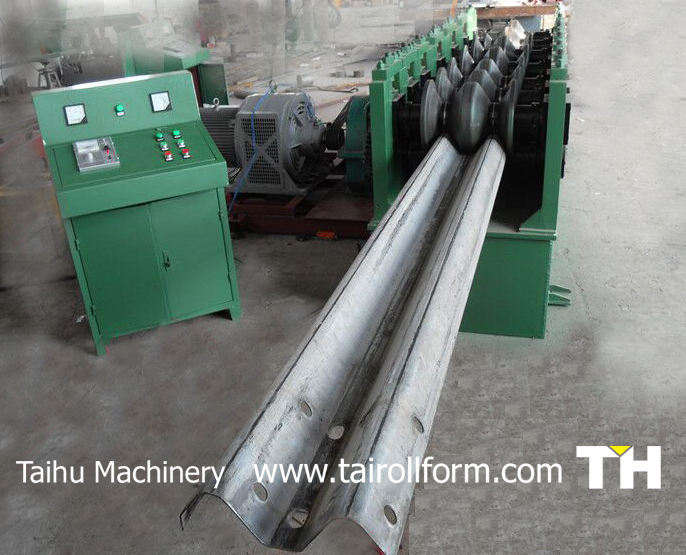

This Highway Guardrail Repairing Machine is mainly applied to repair the crashed and wave shape guardrail beam of highway with 7 rollers and accessorial equipment to carry out the reshaping and recovery of guardrail beam of highway, avoid the crook or twist of guardrail beam, thus enable them to be reused again. It is consisted of main machine, electric motor, controller and other necessary accessories. This is the most perfect equipment in the world with stable performance, easy operation, economical and high efficiency and widely used for road maintenance department.
| G.W. | 5000 KG |
| Main Machine | 3300×2500×1200mm |
| Working Platform Dimensions | 450×500×3500 mm |
| 450×500×2000 mm | |
| Repairing Speed | Theoretical Value: 1 piece/min. |
| Roller Quantity | 7 pieces |
| shaft diameter | Φ80mm |
| Roller Bearings | 214 |
| Rated Power | 15-30 KW |
| Speed Adjusting Range | 3-25 r/min. |
| Rated Revolving Speed | 132-1320 r/min. |
| Operational Parameters | Height above the sea level≤1500 m |
| Temperature of circumstance:-20°C~+45°C | |
| Relative humidity≤98% |
In the installation of the system, the end section must have more than five meter distance between it and workers to ensure safety from the guardrails. After installing the device base (it is fixed by welded steel or concrete footing anchored to the floor by bolts), connect the power supply, add gear oil and after 5 minutes of no abnormal sounds (wires and gear oil should be purchased by buyer), repairs can be carried out.
Our guardrail repairing machine is fixed in the container with steel ropes so that the machine is kept from being collided, and treatment for rust proof, covered by plastic film for the whole machine, spare parts and some small parts packed in wooden box.
