Gutter Roll Forming Machine
Gutter Roll Forming Machine
Introduction
Gutter Roll Forming Machine is used to produce rain gutters. The machine is fully automatically controlled by PLC control system, with the advantage of easy operation and fast efficiency.
Working Flow
Decoiler- Feeding guide- Main Forming- Hydraulic Cutting- Outer Table
Technical Parameter
- material thickness: 1.5-2.0mm
- forming stations: 20 stations
- roller material: GCr15, HRC57-60°
- Shaft diameter: Ø80mm, shaft material: 45# steel
- main motor power: 15Kw
- hydraulic cutting power: 7.5Kw
- machine size: 12000mmx 1500mmx1300mm
- machine weight: 8tons

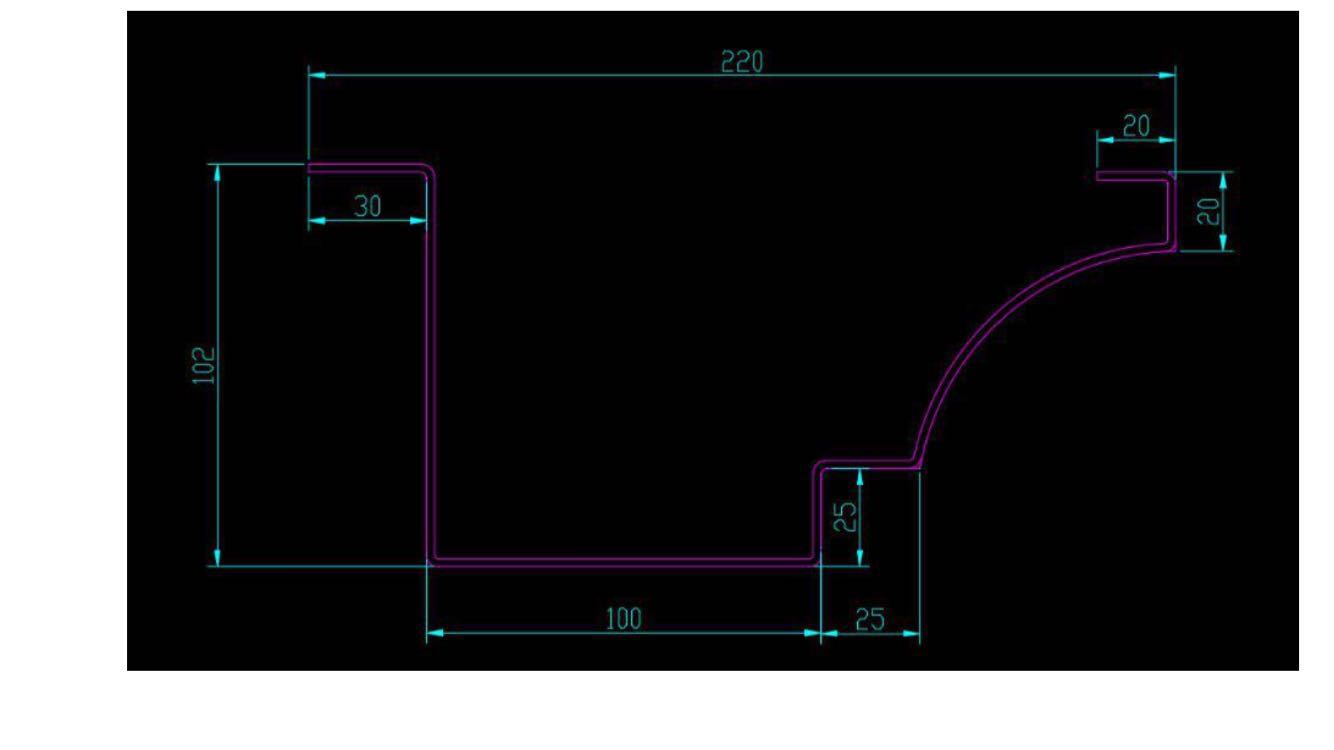

Rain Gutter Drawing

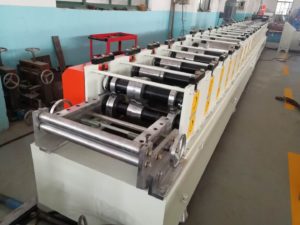

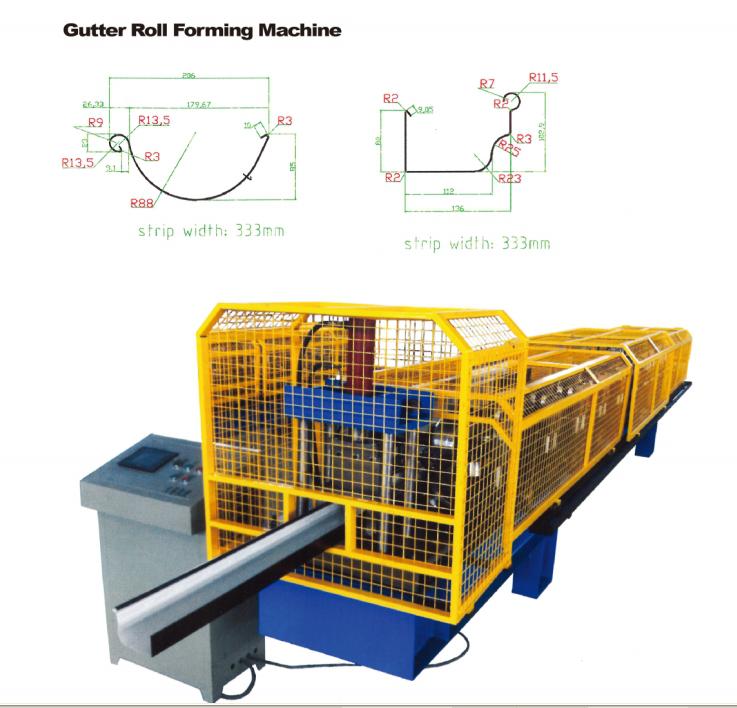

Machine Photo
gutter roll forming machine
gutter roll forming machine

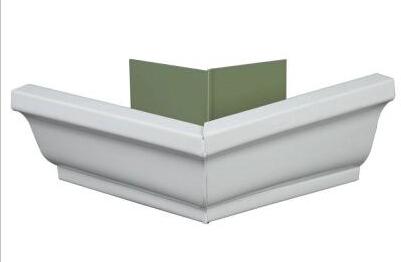

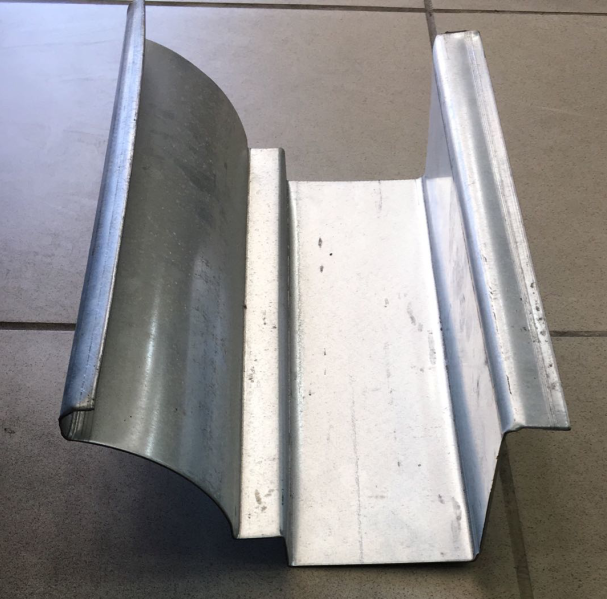

rain gutter
Machine Video
