Introduction

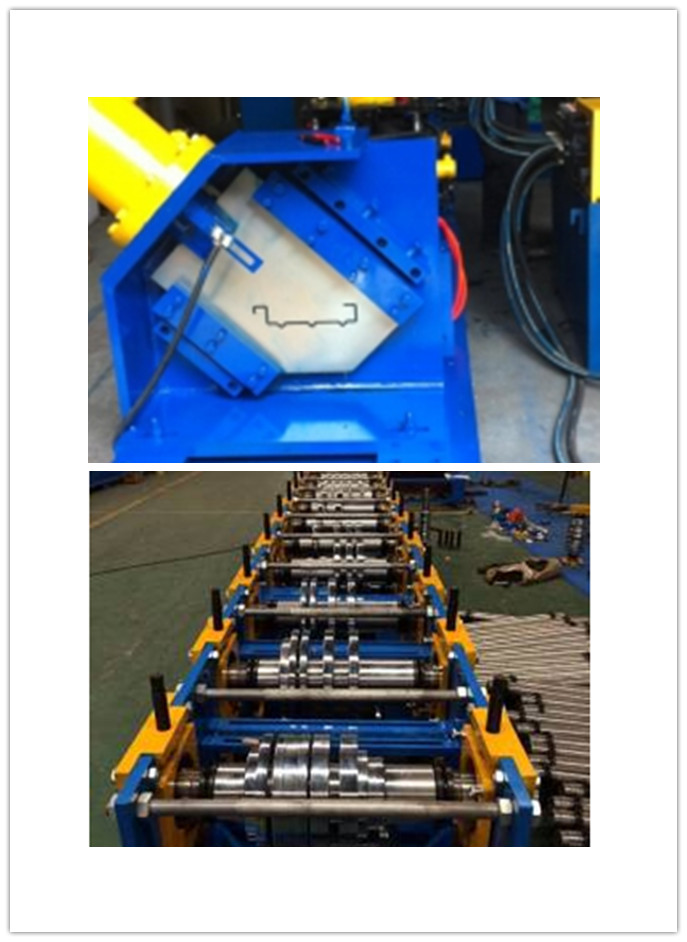

The Fisca Roll Forming Machine is composed of manul decoiler, feeding device, main roll forming, hydraulic cutting, control box and run-out table.
Technical Parameter
- Suitable material: color steel sheet or galvanized steel sheet
- Material thickness: 0.4-0.6mm
- Frame design: wall-plate frame design/ strong-stand frame design
- Forming stations: 15 stations
- Forming speed: 12-15m/min
- Main motor power: 5.5Kw
- Hydraulic cutting power: 4Kw
- Power supply: 380V, 50Hz, 3Phase or as per clients’requirement
- Machine size: 9400mmx 1200mmx1640mm
Application

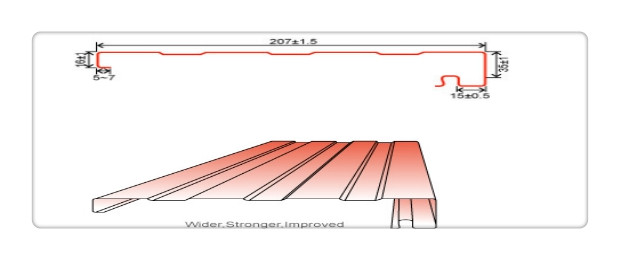

This fascia roll forming machine can produce various kinds of steel panel to use together with Gutters, which are playing an important roll for the drainage system of steel structured buildings.
