European 77 PU Foaming Roller Shutter Door Forming Machine
European 77 PU Foamed Roller Shutter Door Roll Forming Machine
Introduction
European 77 PU Foamed Roller Shutter Door Roll Forming Machine is designed to produce foamed roller shutter doors. This PU foamed roller shutter door roll forming machine integrates cold roll forming technology and PU foaming technology into one production line. Thus continuous automation production of PU roller shutter door slats is achieved. Main material can be roll formed are aluminum coils and galvanised steel coils with thickness 0.26mm to 0.48mm. Fully automatically controlled by PLC control system, the machine has the advantage of easy operation and fast efficiency.
Machine Feature
- Control System: PLC automatic control system
- Drive: electrically driven via gear box with universal joint
- Foaming Machine: low presure ployurethane foaming machine
- Cutting Device: servo flying saw blade cutting device
Working Process

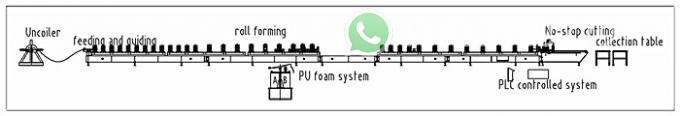

Decoiler- main forming -PU foaming- saw cutting – Outer table
Technical Parameter

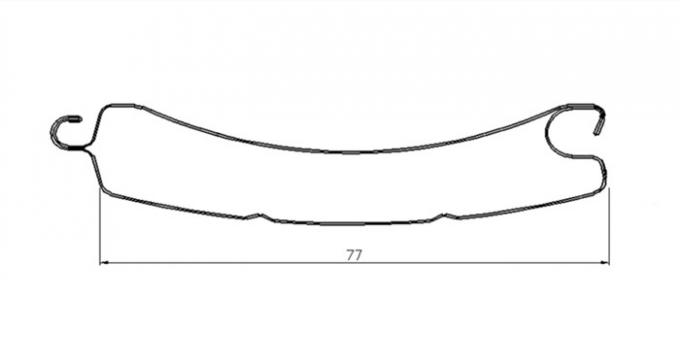

| No. | Item | Specifications | Profile Drawing For Reference |
| 1. | Applicable Material | Aluminum coils; color steel coils |  |
| 2. | Material Thickness | 0.28-0.46mm | |
| 3. | Coil Width | 200-400mm base on profiles | |
| 4. | Roller Stations | 40-46 stations base on profiles | |
| 5. | Forming Speed | 8-12m/min | |
| 6. | Main Motor Power | 15kw | |
| 7. | Roller Material | GCr15, with Chrome plated | |
| 8. | Shaft Diameter | 50mm | |
| 9. | Shaft Material | 40Cr with heat treatment and Chromed | |
| 10. | Cutting Type | Saw cutting | |
| 11. | Cutting Length Tolerance | ±2mm / 6m; ±3mm / 10m |
Machine Photo

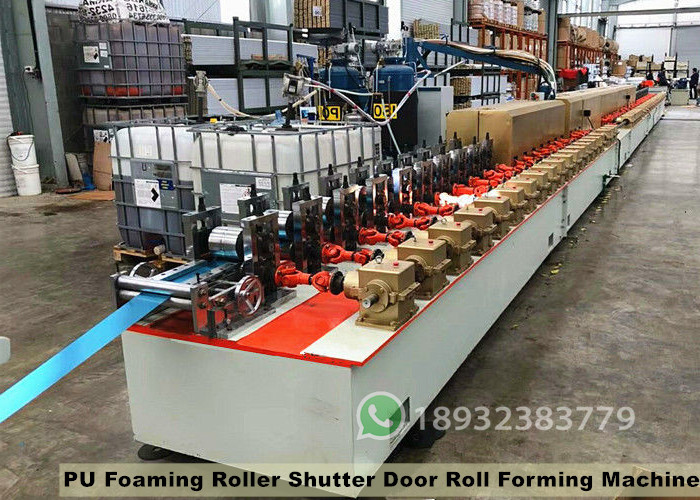

PU Foaming Roller Shutter Door Roll Forming Machine

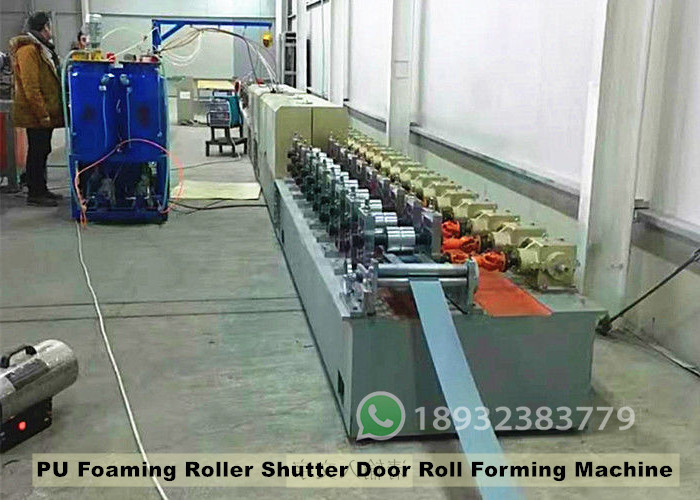

PU Foaming Roller Shutter Door Roll Forming Machine
PU Foaming Roller Shutter Door Roll Forming Machine
