Drive-in Pallet Pallet Rack Roll Forming Machine

Drive-in Pallet Rack Roll Forming Machine

Drive-in Pallet Rack Introduction

The drive-in or drive through pallet rack is capable of storing several pallets deeply. It realizes the optimum utilization of floor space and storage volume, similar to block storage. Yet loading and retrieval are subject to a certain storage cycle. This storage equipment is extremely suited for pressure sensitive goods or unstable storage units stored in large quantities.

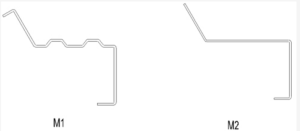

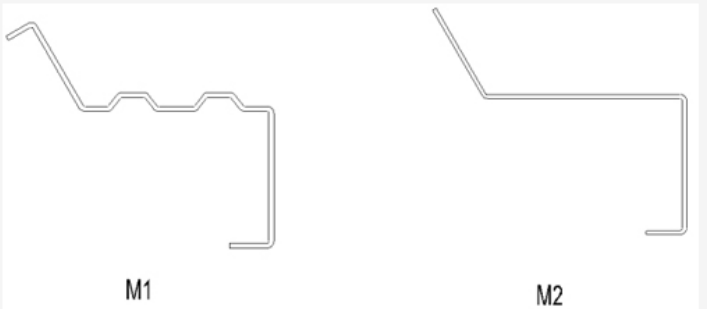

Profile Drawing of Drive-in Pallet Rack

drive-in pallet rack profile

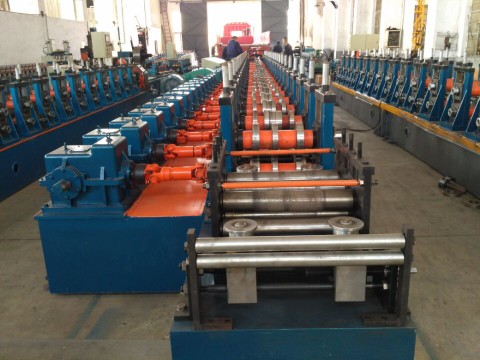

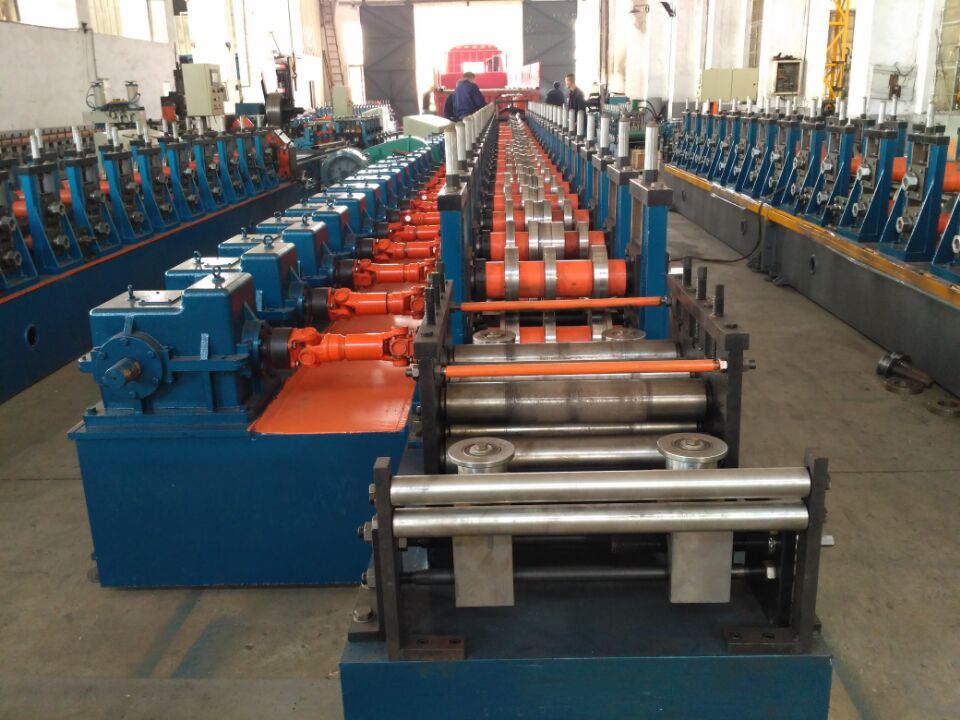

Drive-in Pallet Rack Roll Forming Machine Technical Parameter

  • Forming stations: about 20 stations
  • Roller material: GCr15
  • Shaft diameter: 80mm, material 40Cr
  • Main motor power: 37Kw
  • Hydraulic cutting power: 11Kw
  • Cutting blade material: Cr12Mov
  • PLC control system: Panasonic

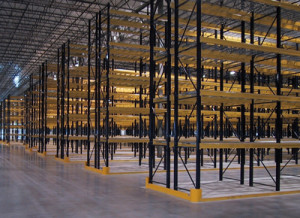

Drive-in Pallet Rack Application

pallet-rack
