Introduction

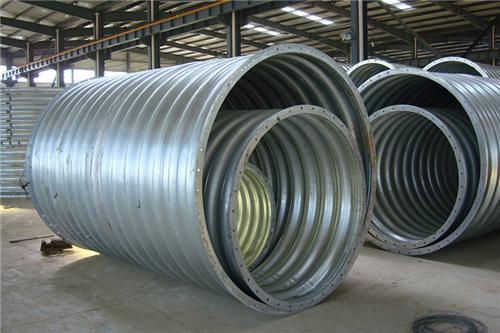

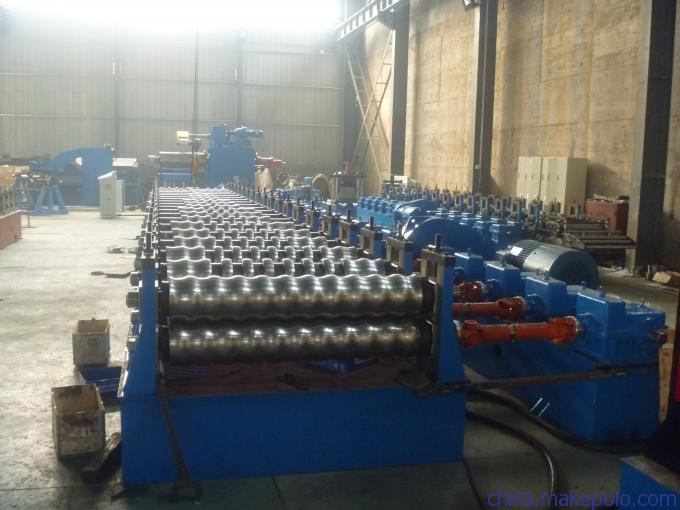

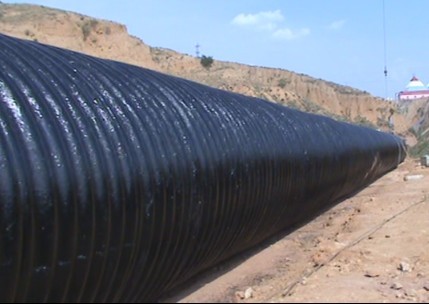

This Corrugated Culvert Pipe Making Machine is used for producing big diameter metal corrugated pipes. And the pipes can be used as supporting for grout when do the cement prefabricated, also for drainage, posttension, fundation pit, pile shell, etc.
Technical Parameter
| Thickness | 3-8mm |
| Forming speed | 0-8m/min |
| Roller stations | 15 stations |
| Main motor power | 250Kw |
| Machine size | 30000*3000*2000mm |
| Machine weight | 130 Tons |
Loading coil car -> Un-coiler -> guiding device -> feeder -> leveller -> shear roll former -> hydraulic press -> curving -> hydraulic cutting -> stacker -> PLC control
