Chicken Feeder Trough Roll Forming Machine
Chicken Feeder Trough Roll Forming Machine
Introduction

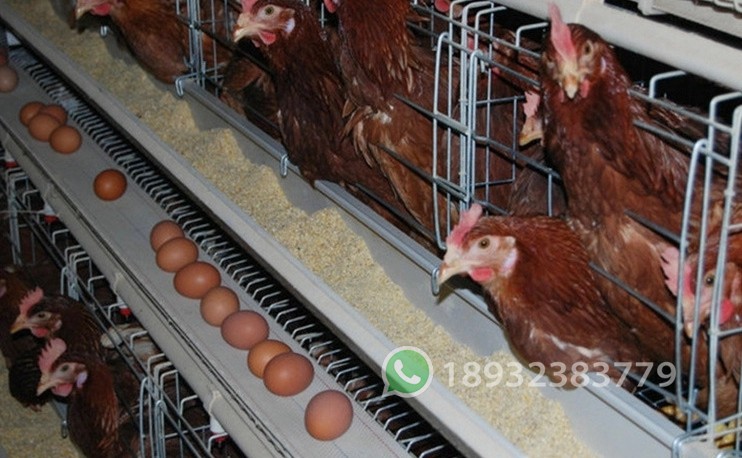

Chicken Feeder Trough Roll Forming Machine is used to produce chicken feeder trough, which is the ideal way to feed the poultry, which ensure easy access to food and also minimise wastage and contamination.
The machine is composed of decoiler, feeding, main roll forming, hydraulic punch, cutting system, and outer table. And it is fully automatically controlled by PLC control system, which has the advantage of easy operation and fast efficiency.
Technical Parameter
- 5 Ton hydraulic decoiler
- roller stations: 30 stations
- main motor power: 7.5Kw x2 sets
- transmission: by gearbox
- roller material:GCr15
- cutting blade material: Cr12Mov

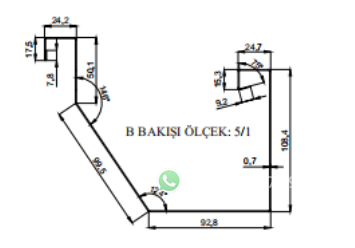

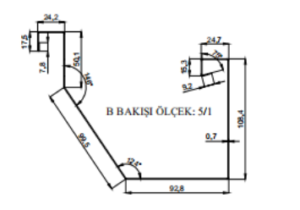

Profile Drawing
chicken feeder trough

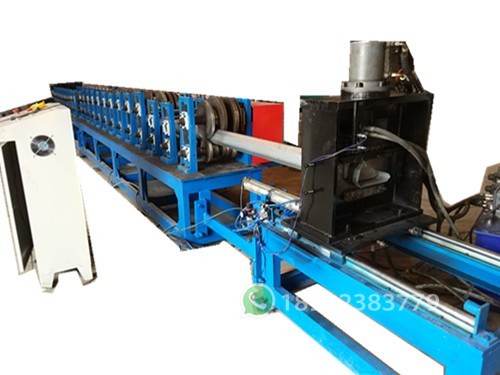

Machine Photo
Chicken Feeder Trough Roll Forming Machine
Chicken Feeder Trough Roll Forming Machine
