Introduction of C Purlin Roll Forming Machine

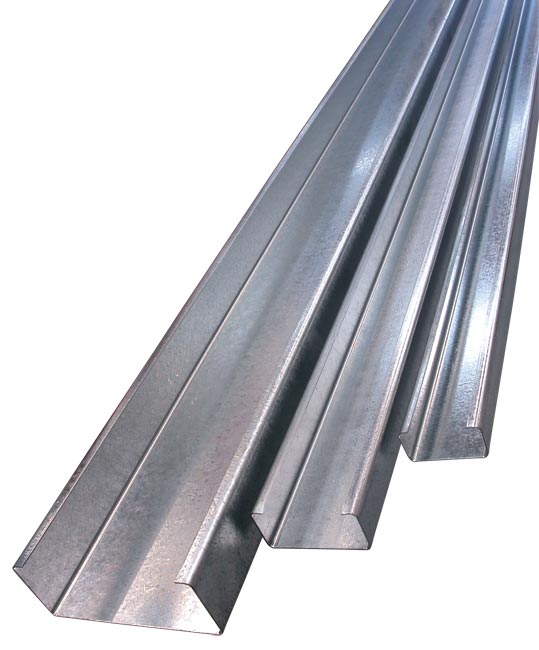

C Purlin Roll Forming Machine consists of uncoiler, leveling device, punching device, main roll forming, cutting unit, hydraulic station, control box and out table. The machines is used to produce Cee or C Purlins, which  are often used for structural support in walls and as floor joists in addition to roofs. Cee purlins may also be used to form braces, ties, or columns in sheds.

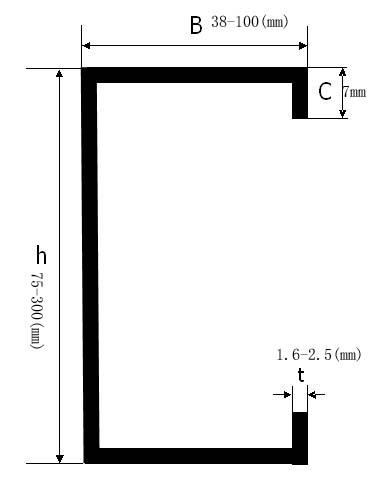

Technical Parameter

• Material thickness:9-2mm.
• Roller stations: 18 stations
• Running speed: 0-18m/min.
• Main shaft material: 40Cr, HRC:250-280
• Main axis diameter: ￠75mm
• Roller material: GCr15 bearing steel, HRC58-62.
• Totalmotor power:5KW;
• Hydraulic station motor power: 5KW
• Decoiler inside diameter: ø508±30mm, outside diameter max:1500mm
• Electrical control system: Whole line adopted PLC control, Panasonic PLC.
• Cutting method: Hydraulic powered, automatically cut to length after roll forming
• Adjust the width by hand wheel
• Machine dimension: 8m L X 0.88 m W X 1.0 m H
• Machine weight: about 8 tons.

Working Process

Decoiling- Feeding- Leveling – Hydraulic punching and cutting- Main Roll forming- Out table

Machine List

Advantage of the C Purlin Roll Forming Machine

This C purlin roll forming machine adopts new components with  high quality material. The hydraulic system and electrical control system are all use advanced and reliable world famous brand.  Designed by the advanced COPRA program, the machine has easy and reliable operation. Rollers are most important parts of the machine, that we make find machining for all rollers, with high quality material, to make sure the machine can be worked stably for long time.

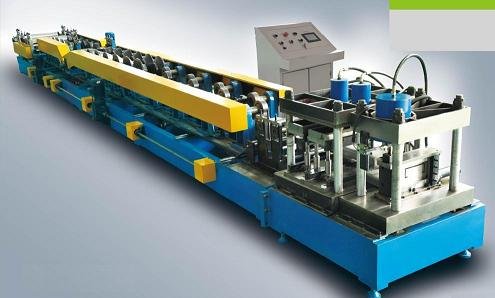

Machine Photoes
