Shipping Container Roof Panel Roll Forming Machine
Shipping Container Roof Panel Roll Forming Machine
Introduction

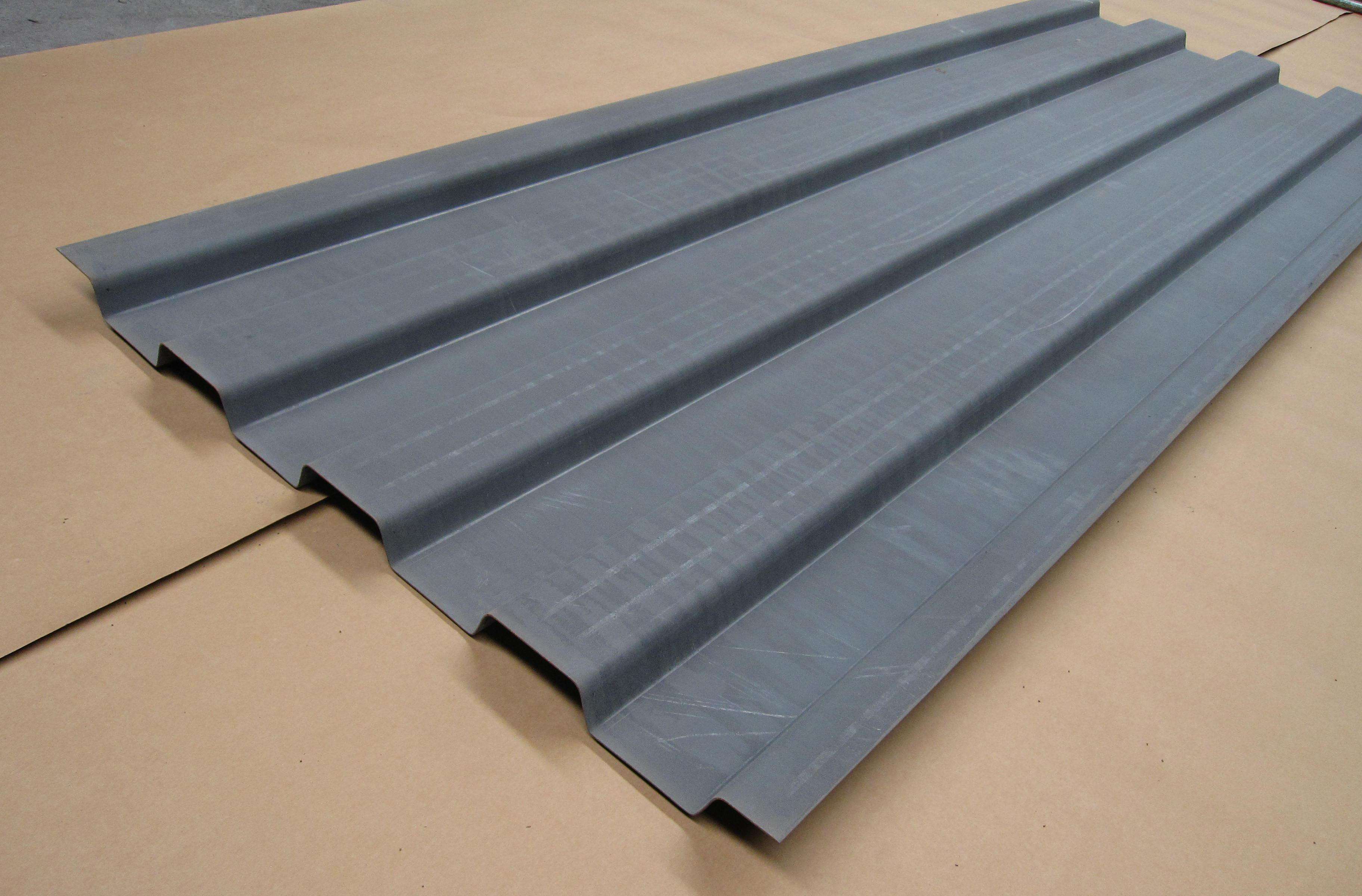

Shipping Container Roof Panel Roll Forming Machine is used to produce container roof panel. The machine is fully automatically controlled by PLC control system with the advantage of easy operation and high efficiency. The machine is composed of decoiler, leveler, main forming machine, cutting device, outer table, hydraulic system, and control box.
Working Process
Decoiler- Main Roll Forming- Hydraulic Cutting-Outer Table
Technical Parameter
- material thickness: 0.8-1.5mm
- forming stations: 18 stations
- roller material: 45# steel
- shaft diameter: 80mm
- main motor power: 18.5Kw x2
- hydraulic cutting power: 5.5Kw
- Machine weight: about 12 tons
- Machine size: about 10000mm(L)x1600mm(W)

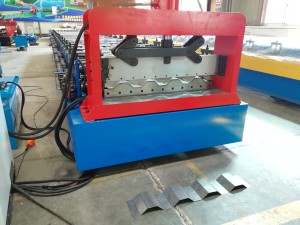

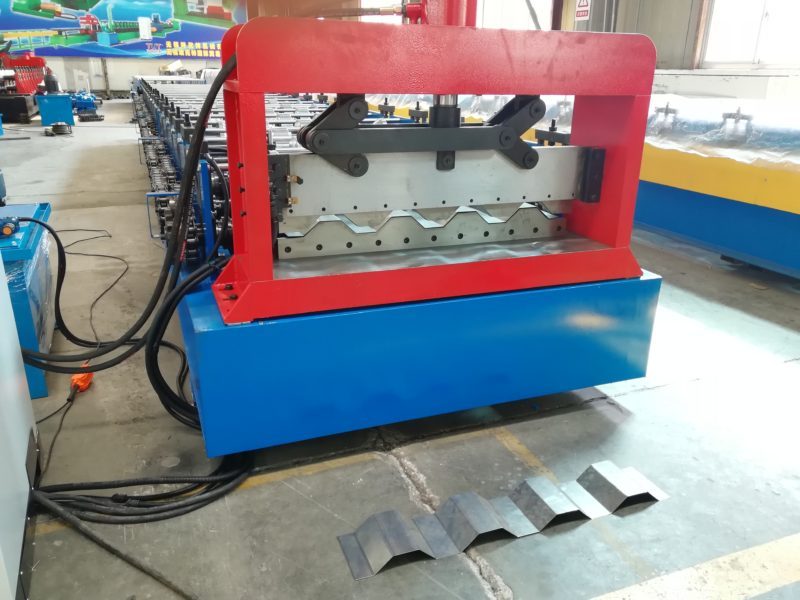

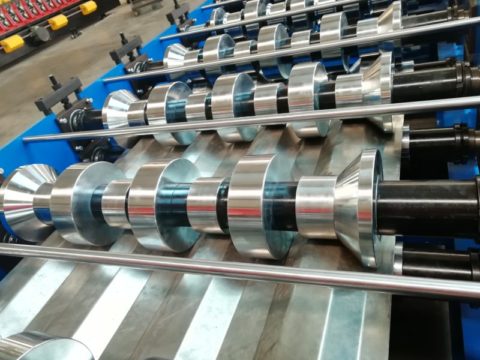

Machine Photo
Shipping Container Roof Panel Roll Forming Machine
Shipping container roof panel roll forming machine
