Nested Steel Rectangular Tube Roll Forming Machine

Introduction

Nested Steel Rectangular Tube Roll Forming Machine is designed to make steel rectangular tube or square tubes with different dimension sizes. The machine is composed of decoiler, main forming machine, servo follow saw cutting, outer table, PLC control system, etc.

Working Process

Decoiler- Main forming- Saw cutting- Outer table

Technical Parameter

1. material thickness:1.5mm

2. roller stations: 20 stations

3. main motor power: 15Kw

4. shaft diameter: 60mm

5. roller material : GCr15

6. shaft material : Cr12

7. machine size: 20000mm（long）X 1500mm(width)

8. machine weight: about 15 tons

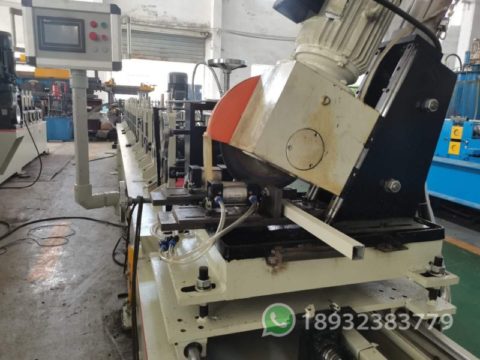

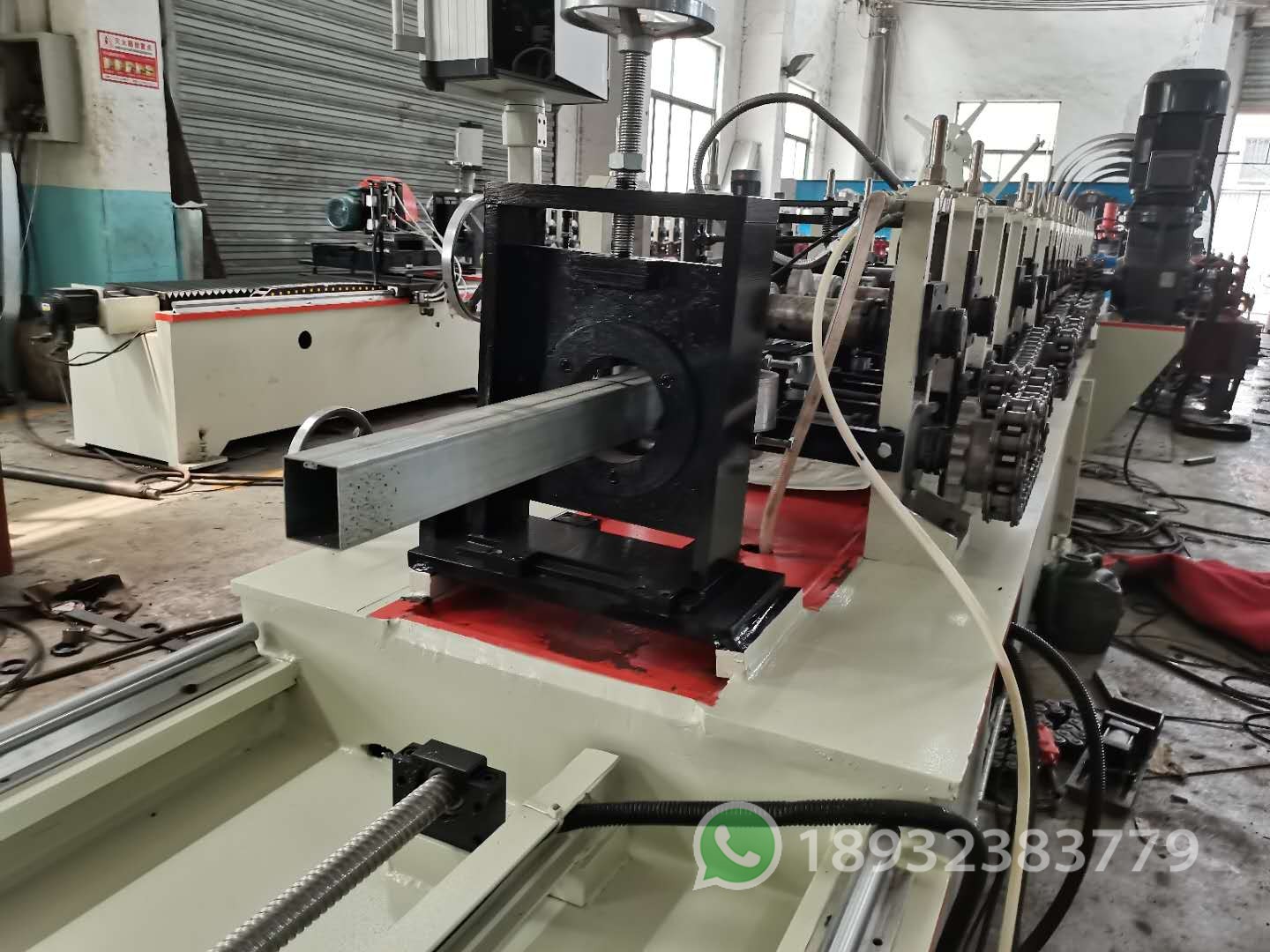

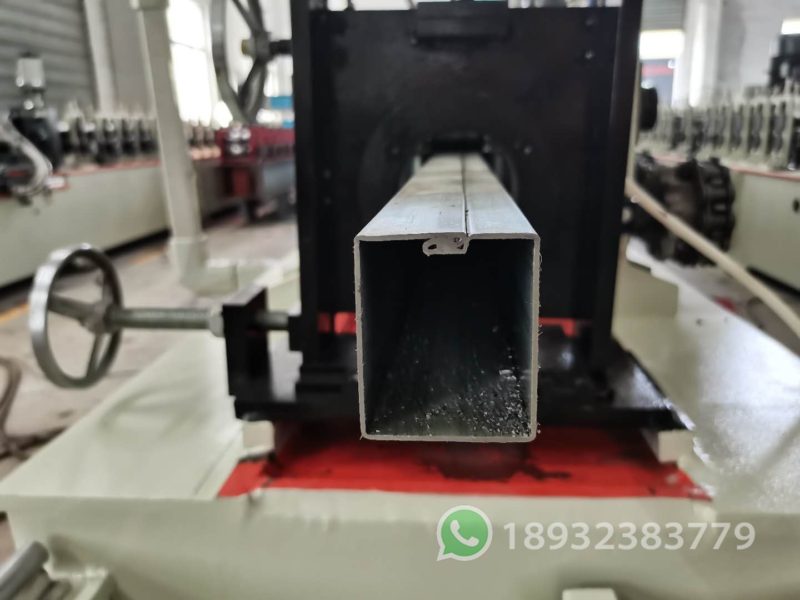

Machine Photo

Nested Steel Rectangular Tube Roll Forming Machine

Nested Steel Rectangular Tube Roll Forming Machine
